Grabbing Trunk System Frequencies – Trunk system frequencies are organized differently on RadioReference.com web pages. In a large trunk system they are organized by sites. The system used in the example below has one site named “Primary” but a complex trunk system will have multiple sites. The DataGrabber is aware of the concept of a site and therefore can distinguish between each of the sites during the paste process. STEP 1: Highlight the header row containing the column headings plus the desired rows of frequency data (see below) by dragging your mouse from the upper left corner of the row section to the lower left corner of the row section, completely encompassing all the rows. Depending on your browser you can then select Edit, Copy or type Ctrl + C or Ctrl + Ins to copy the data to the Windows clipboard. The header row only has to be captured once during a series of copies and pastes from the same group. NOTE: The highlighted area can span multiple “blocks” of data so in the example below you could have also highlighted additional site frequencies if configured in the system in one copy action. In fact you can highlight ALL the frequencies for the trunk system in one copy action.

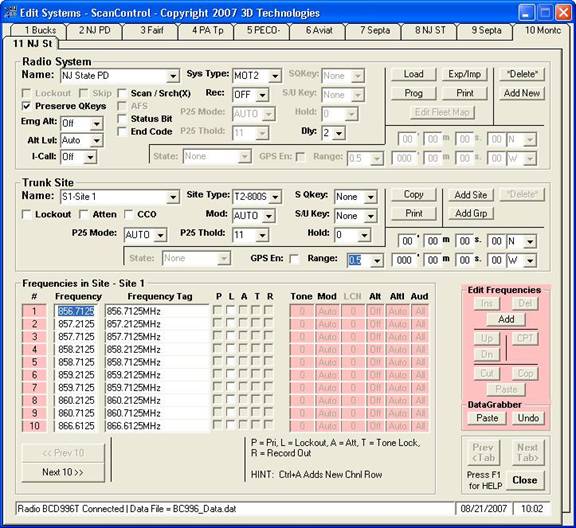

STEP 2: Open the ScanControl System Editor and click the Paste / Append button. The DataGrabber has pasted the data rows (below), accounted for the frequency and defaulted the alpha tag. You can use the Undo button to reverse the Paste / Append action and return the Group data back to what it was before the Paste / Append.  That's all there is to it! To see this method in action you should view the demonstration videos we've prepared (see below). Each 2 to 4 minute video demonstrates the DataGrabber in actual use with each different type of scanner editor found in ScanControl. (Note: Turn your PC speaker volume up to hear the video narration. Flash video player Version 7 or higher required. If you don't have it you will be prompted for an automatic download.) Bank Style Radios (BC245, BCT8, BC895, BC898, BC780, BC250D, BC296D, BC785D, BC796D, PRO-2052)
Dynamic Memory Archiecture(1) Radios (SC230, BC246T, BR330T, BCD396T)
Dynamic Memory Archiecture(2) Radios (BCD996T, BCT15)
|
|
